IRt/c.3X

The IRt/c is calibrated to match a conventional thermocouple at a specific temperature. By adjusting the calibration setting of the IRt/c the signal output (mVout) will be within 2% linear to match the conventional thermocouple at temperatures close to the calibration point. Sensor Range: -45 to 650°C (-50 to 1200°F) Field of View: 17° (3:1) approximately Minimum Spot Size: 6mm (0.25")

产品特点

Features

  • 非接触测温

  • 自供电

  • 可重复性0.01℃(0.02℉)

  • 可互换性±1%

  • 分辨率约0.0001℃

  • 体积小

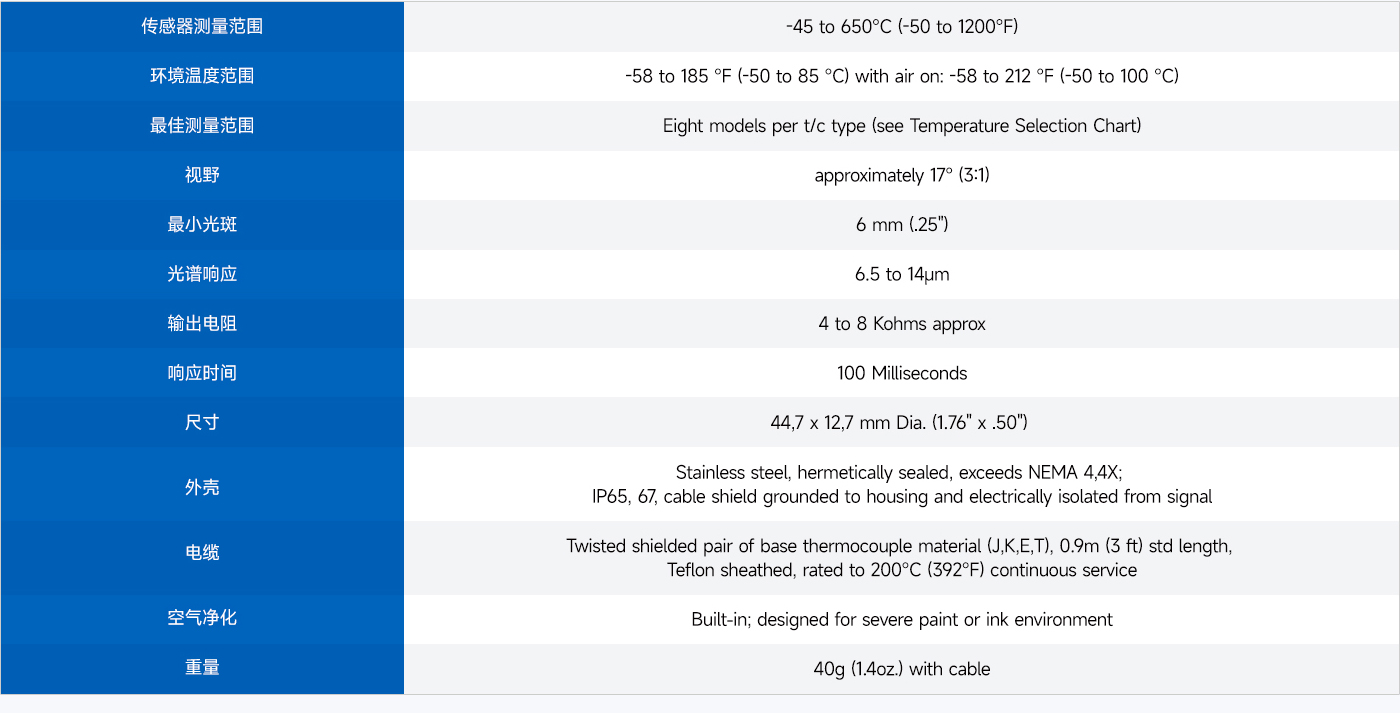

技术指标

Technical index
