AutoSmart 3X

The AutoSmart processes the mV signal from any IRt/c or Micro IRt/c model, linearizes the signal and gives an analog output (4-20mA, 0-5V, 0-10V). No Impedance, leakage current, or linearity problems to worry about You can chose your range: 0-100C or 0-2050C target temperature. Custom calibrations are offered. Sensor Range: -35 to 250°C (-31 to 482°F) Field of View: 3:1 (17°) approximately Minimum Spot Size: 6mm (0.25")

Features

  • 非接触测温

  • 自供电

  • 可重复性0.01℃(0.02℉)

  • 可互换性±1%

  • 分辨率约0.0001℃

  • 体积小

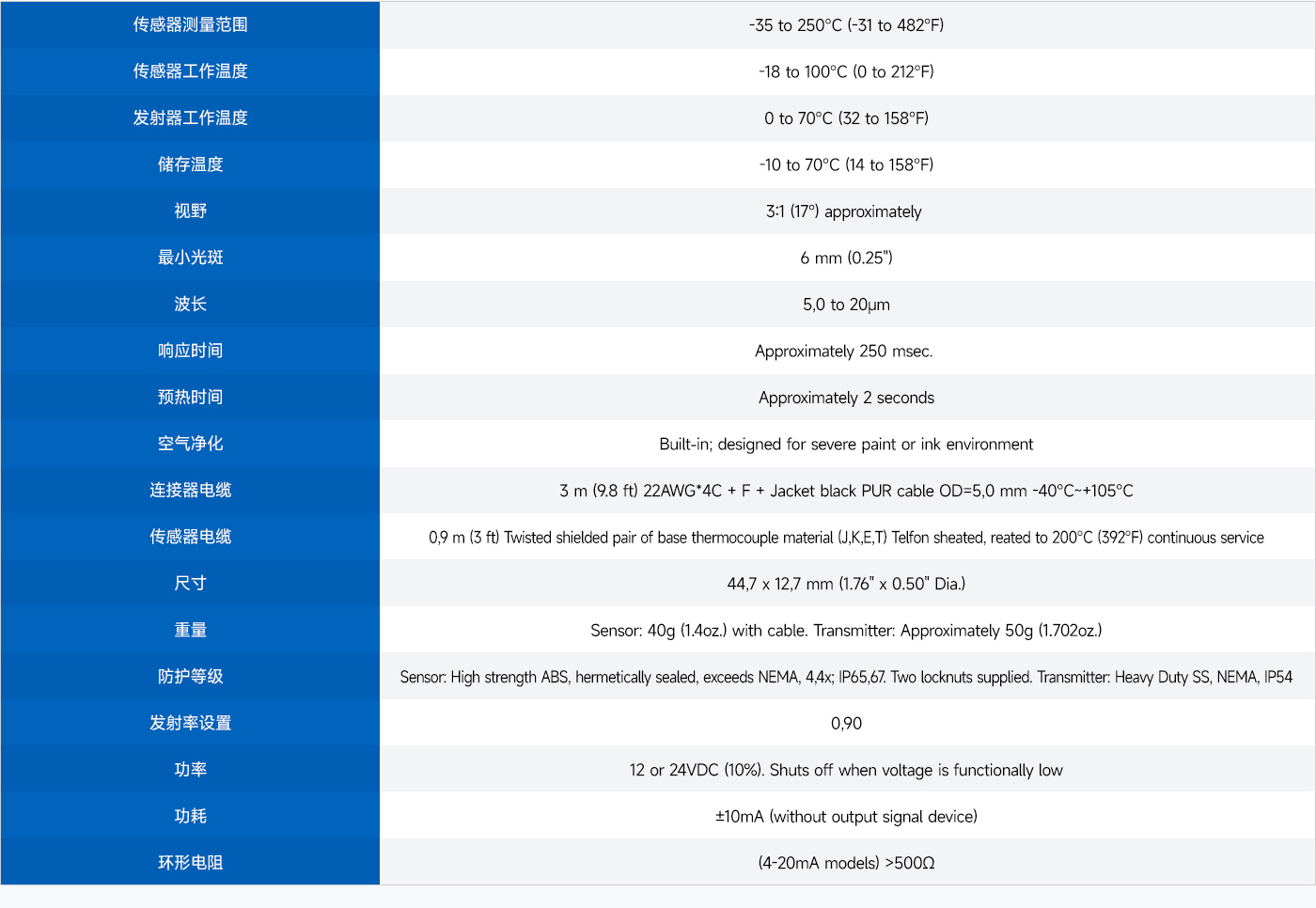

Technical index
